PP PE PET Monofilament Extrusion Line | Plastic Filament Making Machine-CNRM

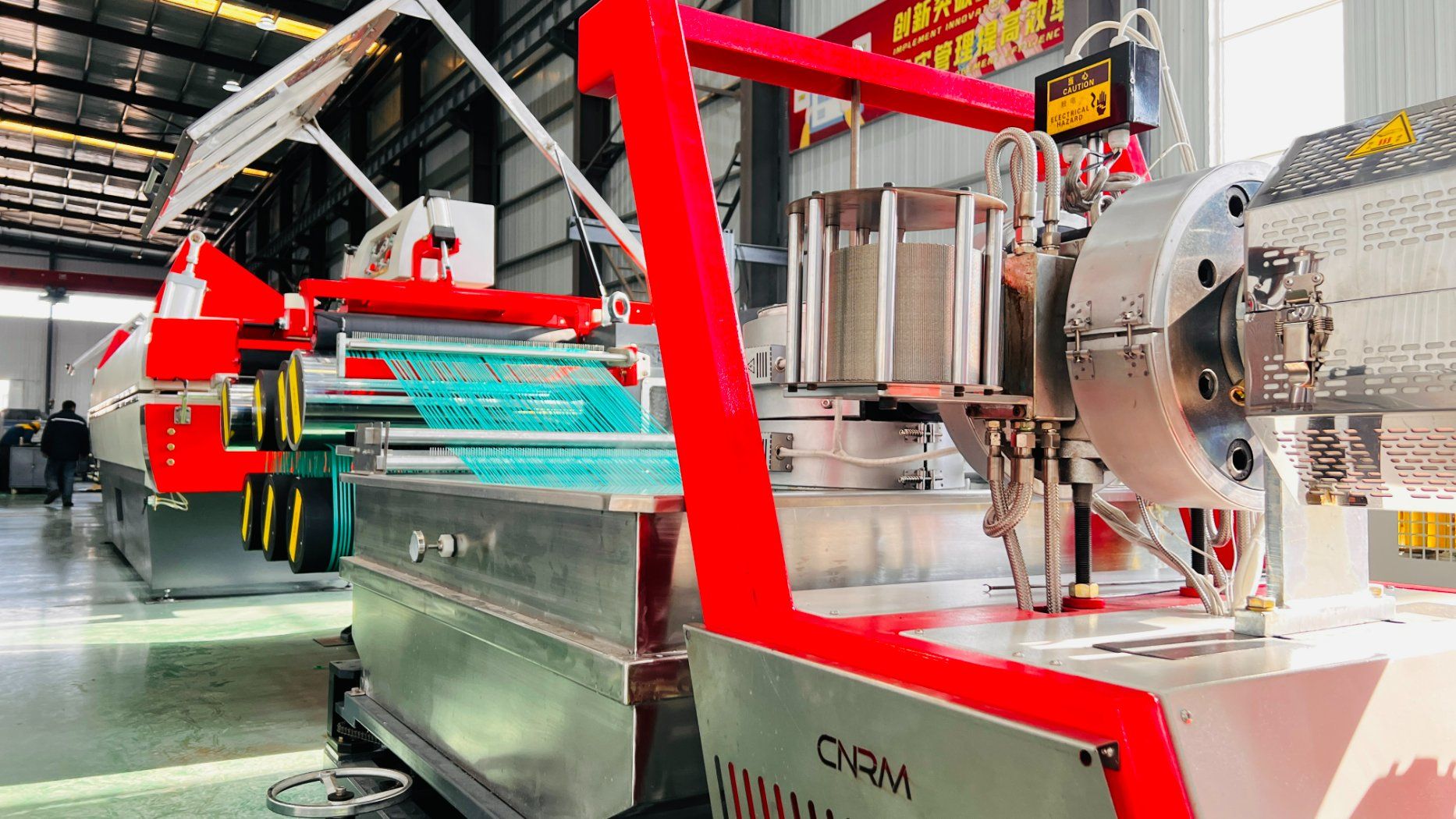

Name: PP PE PET Monofilament Extrusion Line | Plastic Filament Making Machine-CNRM
Rating: 4.8 (81 reviews)

Our PP PE PET Monofilament Extrusion Line is designed for high-speed production of plastic filaments.

Product Detail

PP PE PET Monofilament Extrusion Line | Plastic Filament Making Machine-CNRM

Brief Introduction

CNRM HDYSJ PP PE PET Monofilament Yarn Extrusion Line has the solution for the production of PP PE Yarn.

1. Raw material: PP(polypropylene), HDPE( polyethylene) ,PE, PET , nylon.

100% new or recycled mixed material
2. Yarn size: Diameter 0.13-0.5mm

3. Capacity: 1200-4000KG/24H

4. Application: Rope, Net, Mesh, Bag, Broom, Brush.

Technical data-PP PE PET Monofilament Extrusion Line | Plastic Filament Making Machine-CNRM

Item	*HDYSJ-7033**	HDYSJ-80×33	HDYSJ-90×33
Screw diameter	70mm	80mm	90mm
Fiber diameter	0.13-0.35mm	0.13-0.35mm	0.13-0.35mm
Ratio of L/D	33:1	33:1	33:1
Rotation speed of screw	20-90r/min	20-90r/min	20-90r/min
Drawing ratio	4-10	4-10	4-10
Heating Type	Hot Water Tank/Hot Oven	Hot Water Tank/Hot Oven	Hot Water Tank/Hot Oven
Power consumption	100kw/30kw	130kw/40kw	150kw/50kw
Max output capacity	1200kg/24h	2000kg/24h	3000kg/24h
Machine dimension(L×W×H)	20×3×2.5m	23×3×2.5m	27×3×2.5m
Machine weight	10 tons	12 tons	15 tons

Optional Equiment of PP PE PET Monofilament Extrusion Line

· HMI+PLC system

· Meter pump

·Auto screen changer

·Gravimetric dosing system

Application-PP PE PET Monofilament Extrusion Line

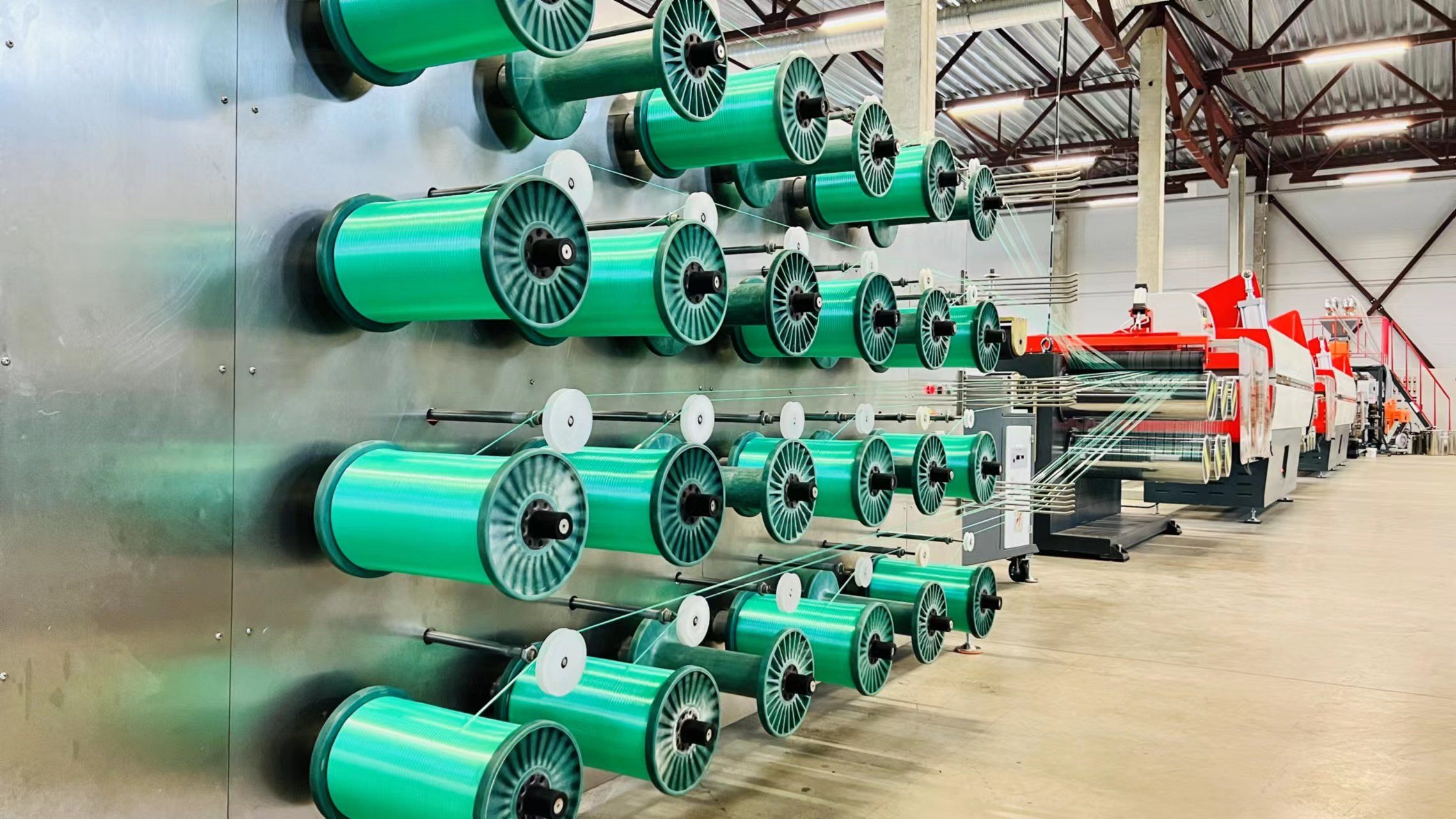

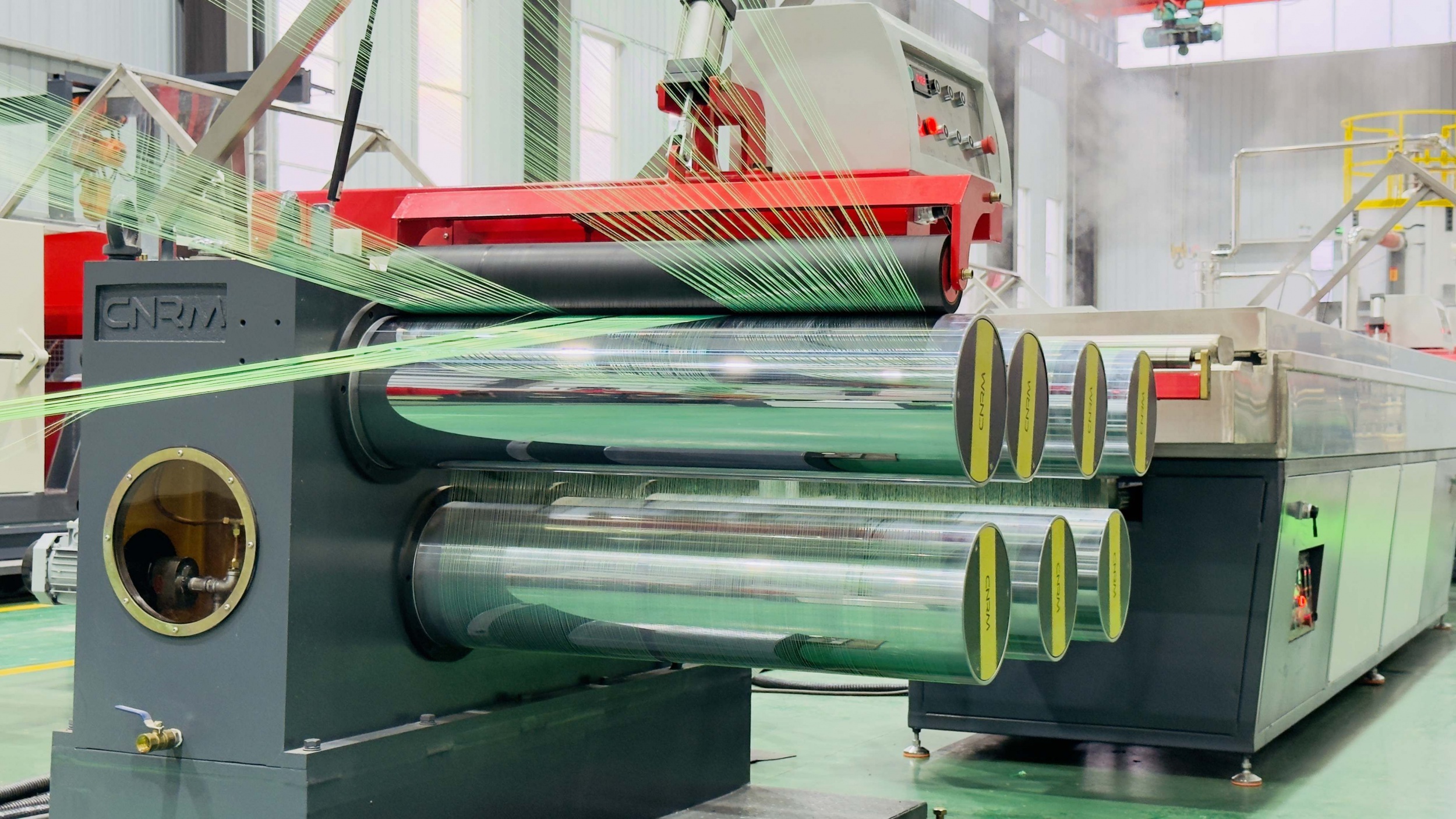

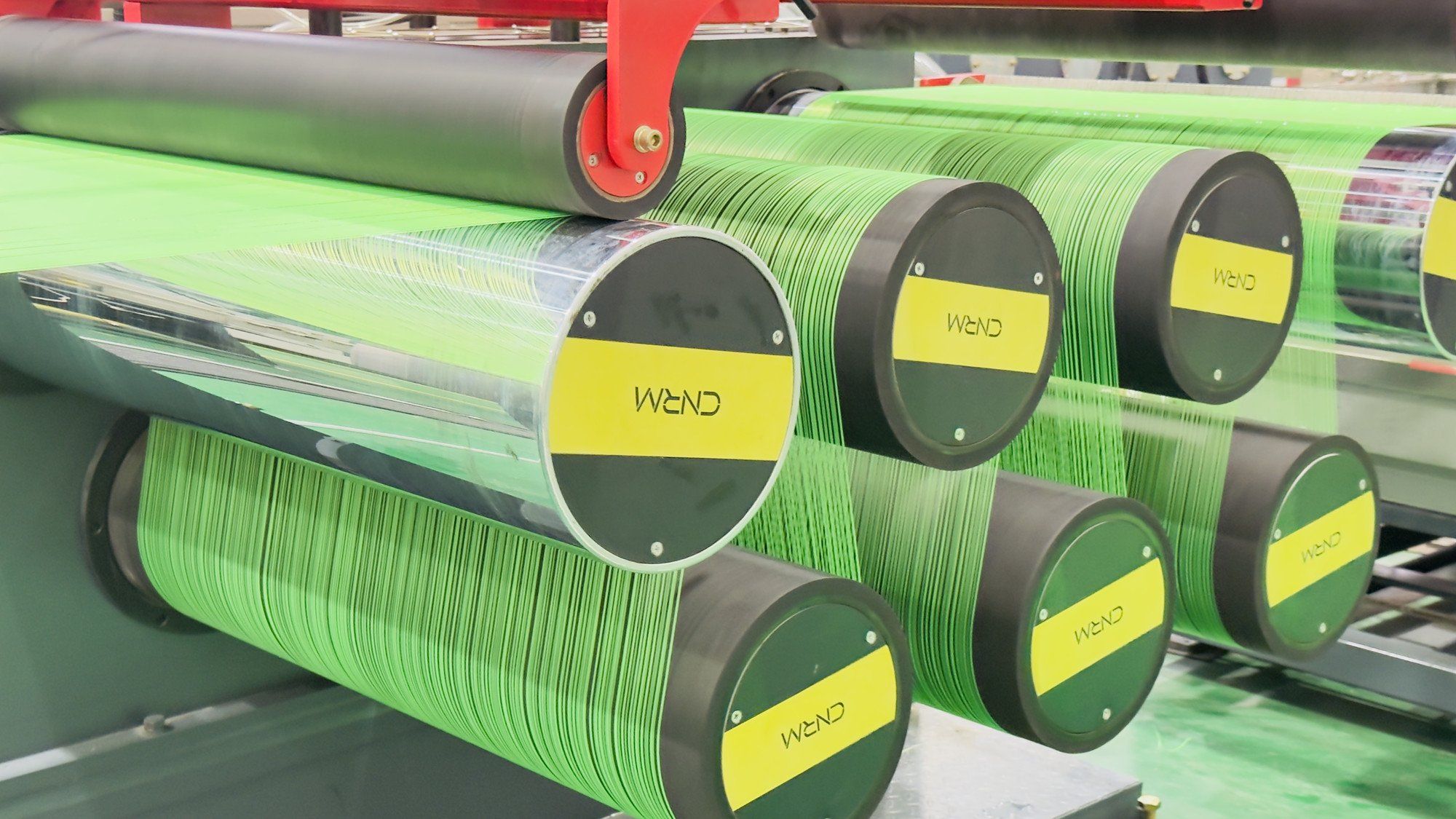

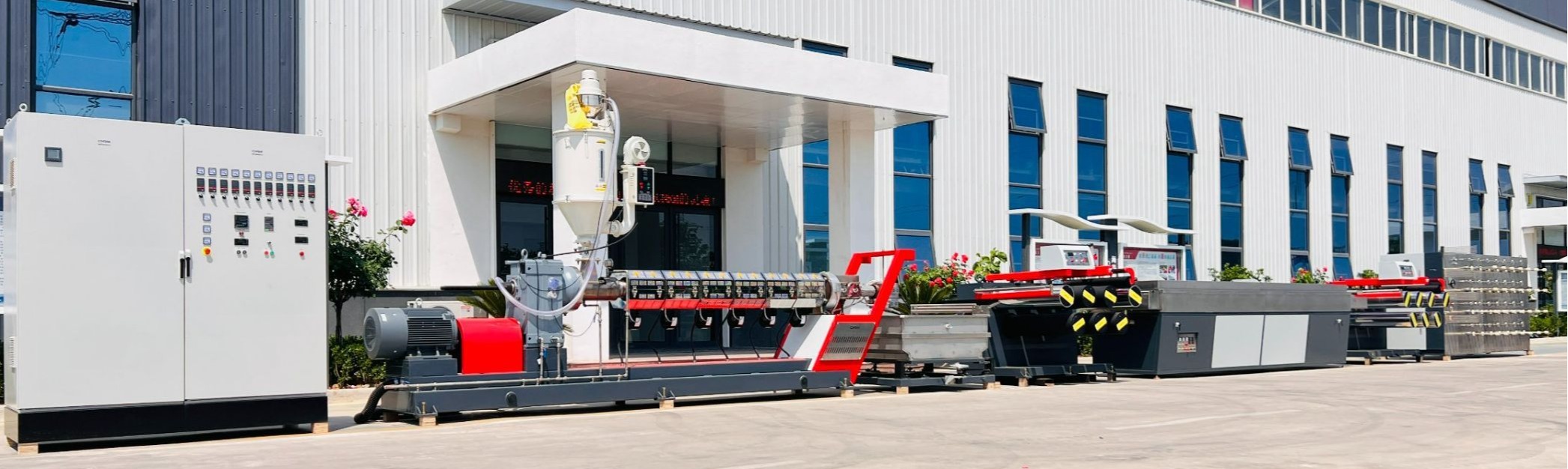

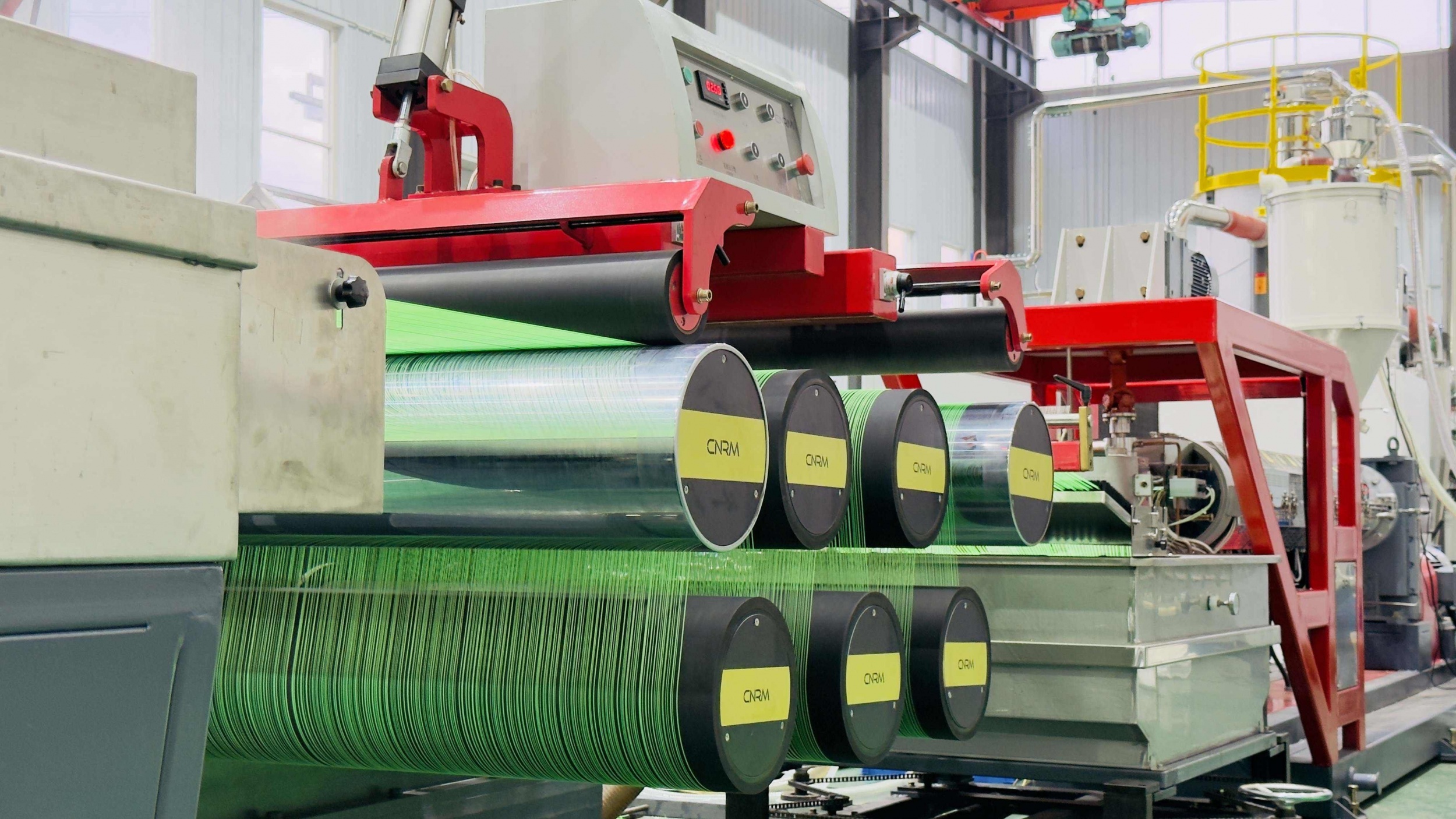

Detail Photos Of Plastic Extruders

If you need PP PE PET Monofilament Extrusion Line | Plastic Filament Making Machine-CNRM price and video, Please contact us at any time!
